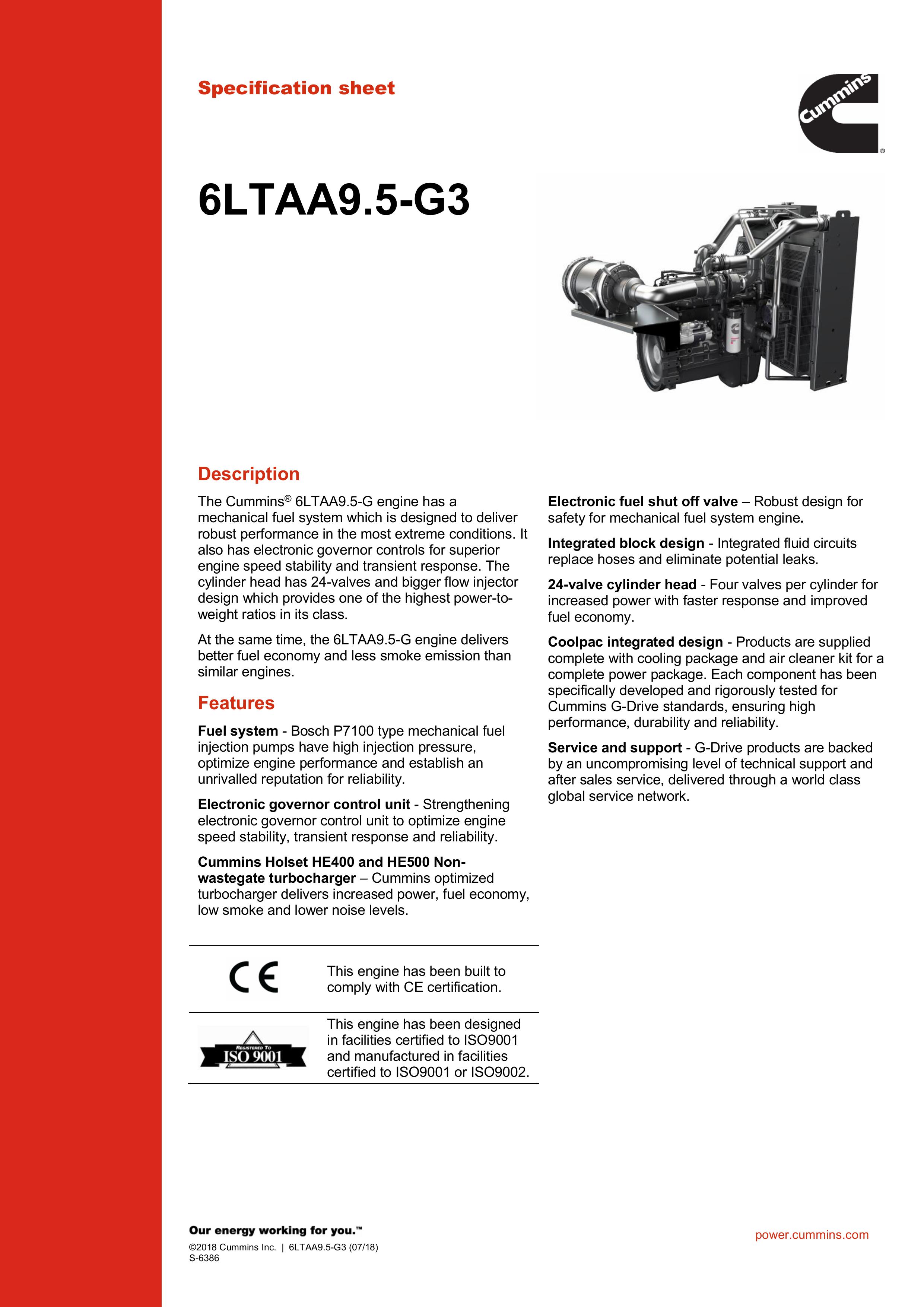

Cummins 6LTAA9.5-G3 – Diesel Engine
━━━━━━━━━━━━━━━━━━━━
Overview
━━━━━━━━━━━━━━━━━━━━
The Cummins 6LTAA9.5-G3 engine has a mechanical fuel system
designed to deliver robust performance in the most extreme conditions.
It also has electronic governor controls for superior engine speed
stability and transient response. The cylinder head has 24-valves and
bigger flow injector design which provides one of the highest
power-to-weight ratios in its class.
The 6LTAA9.5-G3 delivers better fuel economy and less smoke emission
than similar engines.
━━━━━━━━━━━━━━━━━━━━

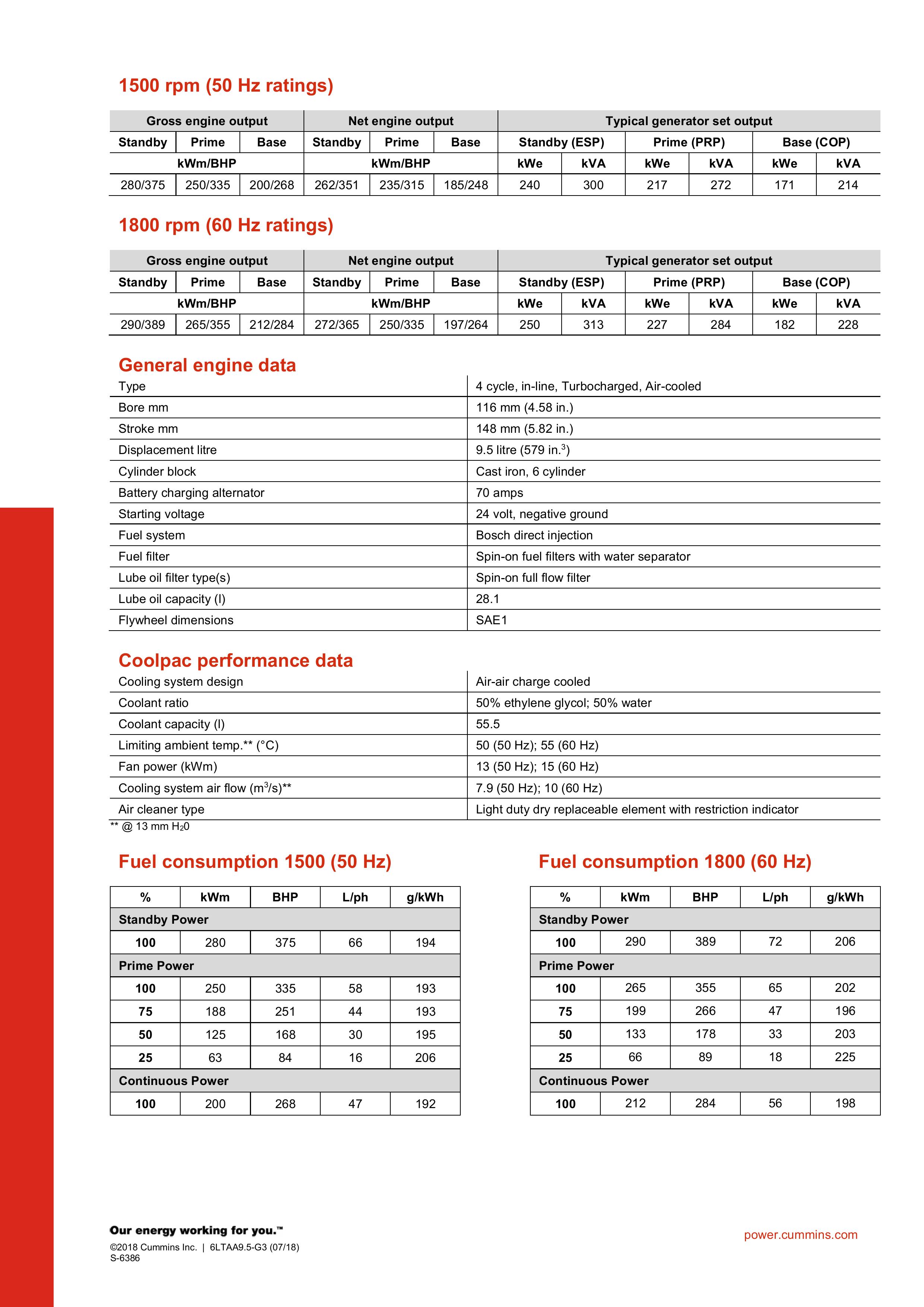

Power Output – 1500 rpm (50 Hz)
━━━━━━━━━━━━━━━━━━━━
🔴 Standby Power (ESP):
240 kWe | 300 kVA
🔴 Prime Power (PRP):
217 kWe | 272 kVA
🔴 Base Load (COP):
171 kWe | 214 kVA
━━━━━━━━━━━━━━━━━━━━
Power Output – 1800 rpm (60 Hz)
━━━━━━━━━━━━━━━━━━━━
🔴 Standby Power (ESP):
250 kWe | 313 kVA
🔴 Prime Power (PRP):
227 kWe | 284 kVA
🔴 Base Load (COP):
182 kWe | 228 kVA
━━━━━━━━━━━━━━━━━━━━
Technical Specifications
━━━━━━━━━━━━━━━━━━━━
Type: 4 cycle, In-line, Turbocharged, Air-cooled
Cylinders: 6 (Cast Iron Block)
Displacement: 9.5 litre (579 in³)
Bore × Stroke: 116 × 148 mm
Fuel System: Bosch Direct Injection
Starting Voltage: 24V Negative Ground
Battery Charging Alternator: 70 Amps
Fuel Filter: Spin-on with Water Separator
Lube Oil Capacity: 28.1 L
Flywheel: SAE1
━━━━━━━━━━━━━━━━━━━━
Cooling System Data
━━━━━━━━━━━━━━━━━━━━
Cooling System Design: Air-air Charge Cooled
Coolant Ratio: 50% Ethylene Glycol / 50% Water
Coolant Capacity: 55.5 L
Max Ambient Temp (50 Hz): 50°C
Max Ambient Temp (60 Hz): 55°C
Fan Power: 13 kWm (50 Hz) | 15 kWm (60 Hz)
Cooling Air Flow: 7.9 m³/s (50 Hz) | 10 m³/s (60 Hz)
Air Cleaner: Light duty dry replaceable element with restriction indicator
━━━━━━━━━━━━━━━━━━━━

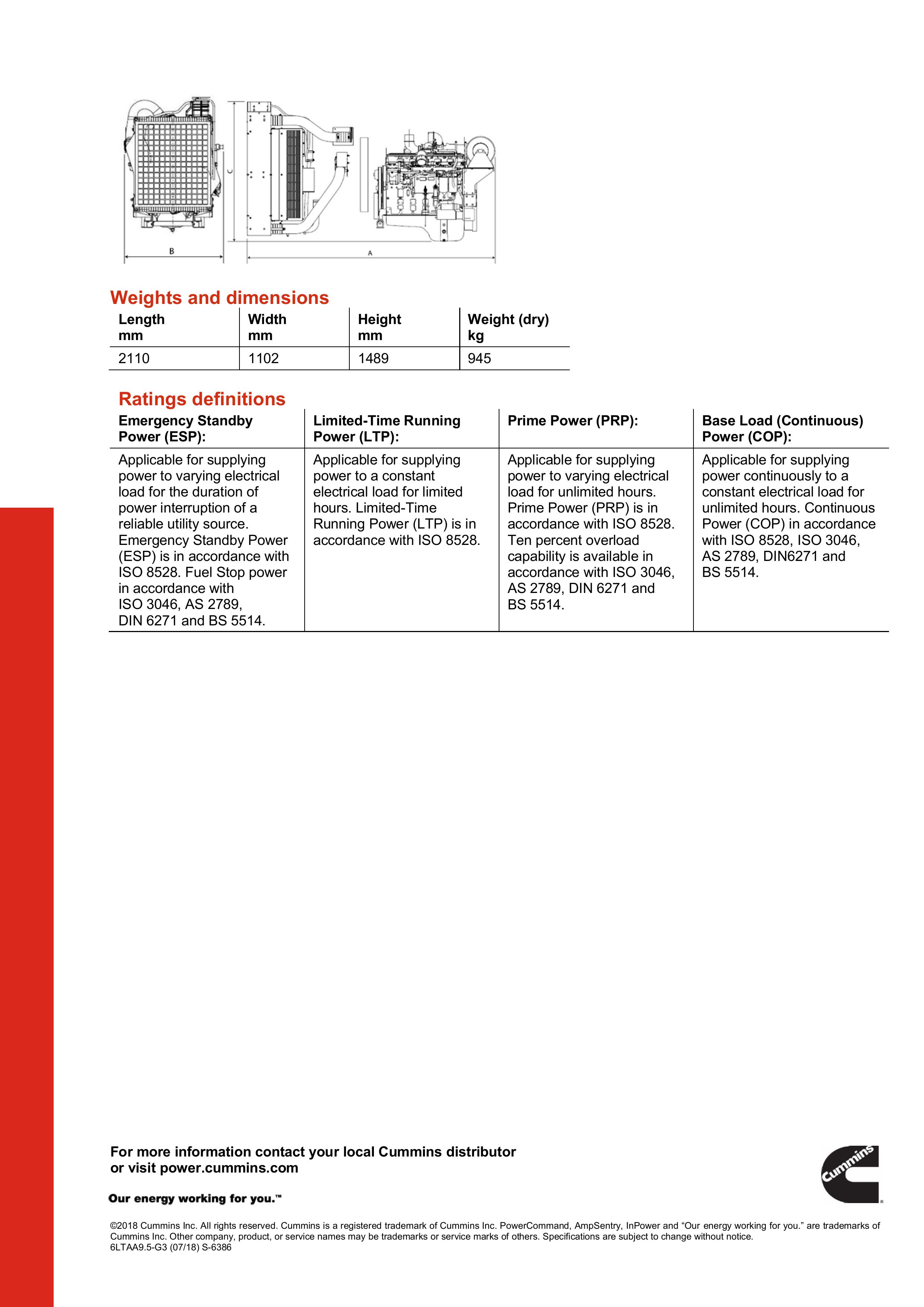

Dimensions & Weight
━━━━━━━━━━━━━━━━━━━━
Length: 2,110 mm
Width: 1,102 mm
Height: 1,489 mm
Dry Weight: 945 kg
━━━━━━━━━━━━━━━━━━━━
Fuel Consumption – 1500 rpm (50 Hz)
━━━━━━━━━━━━━━━━━━━━
Standby Power (100%): 66 L/hr
Prime Power (100%): 58 L/hr
Prime Power (75%): 44 L/hr
Prime Power (50%): 30 L/hr
Prime Power (25%): 16 L/hr
Base Load (100%): 47 L/hr
━━━━━━━━━━━━━━━━━━━━
Fuel Consumption – 1800 rpm (60 Hz)
━━━━━━━━━━━━━━━━━━━━
Standby Power (100%): 72 L/hr
Prime Power (100%): 65 L/hr
Prime Power (75%): 47 L/hr
Prime Power (50%): 33 L/hr
Prime Power (25%): 18 L/hr
Base Load (100%): 56 L/hr
━━━━━━━━━━━━━━━━━━━━
Features
━━━━━━━━━━━━━━━━━━━━
✅ Bosch P7100 Mechanical Fuel System
High injection pressure pumps optimize engine performance and
establish an unrivalled reputation for reliability.
✅ Electronic Governor Control Unit
Optimizes engine speed stability, transient response and reliability.
✅ Cummins Holset HE400 & HE500 Turbocharger
Non-wastegate turbocharger delivers increased power, fuel economy,
low smoke and lower noise levels.
✅ Electronic Fuel Shut Off Valve
Robust design for safety for mechanical fuel system engine.
✅ Integrated Block Design
Integrated fluid circuits replace hoses and eliminate potential leaks.
✅ 24-Valve Cylinder Head
Four valves per cylinder for increased power, faster response and
improved fuel economy.
✅ Coolpac Integrated Design
Complete with cooling package and air cleaner kit. Each component
specifically developed and rigorously tested for Cummins G-Drive
standards.
✅ World-Class Service & Support
G-Drive products backed by uncompromising technical support and
after sales service through a world class global service network.
━━━━━━━━━━━━━━━━━━━━
Certifications
━━━━━━━━━━━━━━━━━━━━
✅ CE Certified
✅ ISO 9001 – Quality Management
✅ ISO 9002 – Quality Management
━━━━━━━━━━━━━━━━━━━━
