Cummins KTA50-G3 – Fuel Optimized Diesel Engine
━━━━━━━━━━━━━━━━━━━━

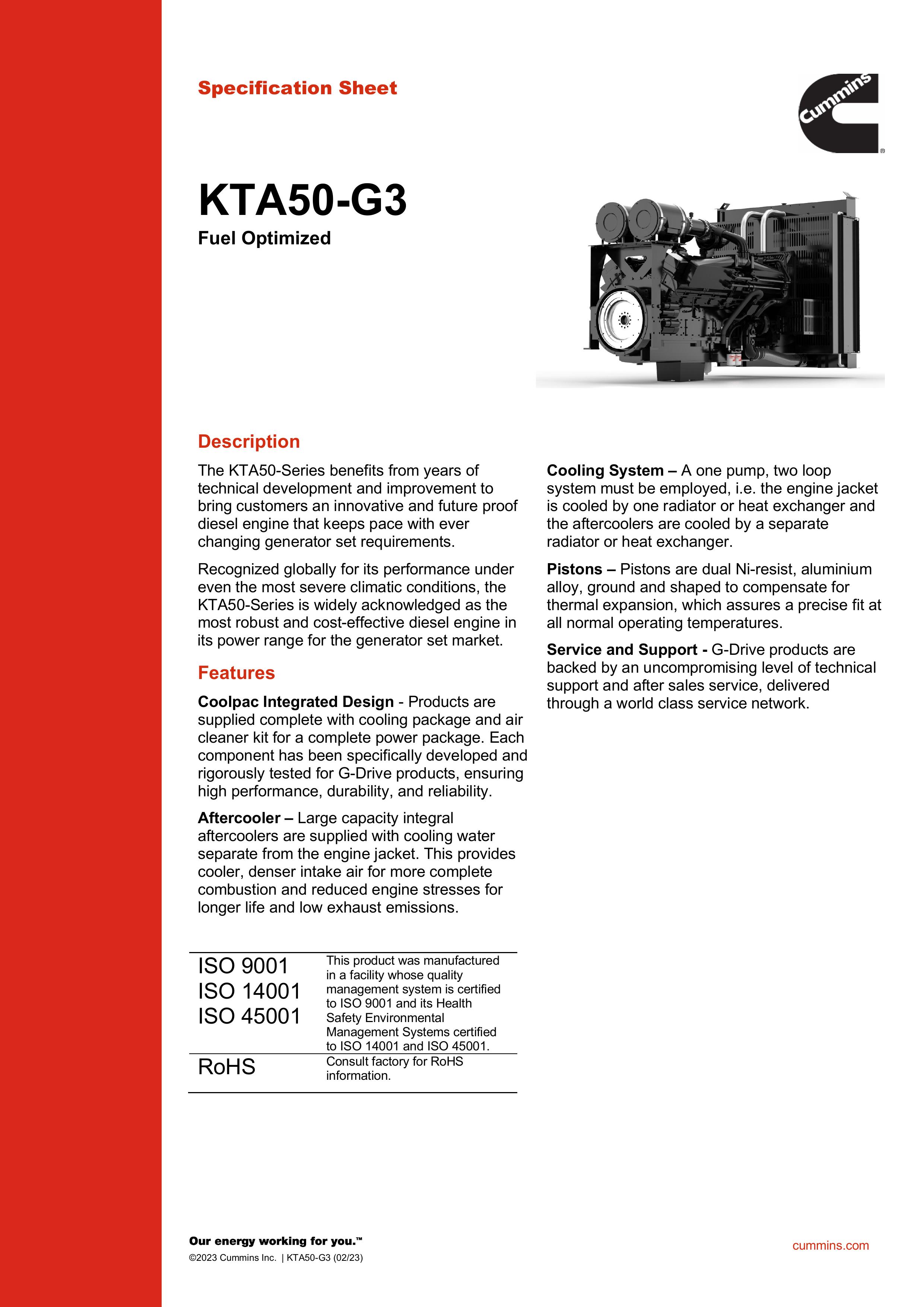

Overview
━━━━━━━━━━━━━━━━━━━━
The KTA50-Series benefits from years of technical development and
improvement to bring customers an innovative and future proof diesel
engine that keeps pace with ever changing generator set requirements.
Recognized globally for its performance under even the most severe
climatic conditions, the KTA50-Series is widely acknowledged as the
most robust and cost-effective diesel engine in its power range for
the generator set market.
━━━━━━━━━━━━━━━━━━━━
Power Output – 1500 rpm (50 Hz)
━━━━━━━━━━━━━━━━━━━━
🔴 Standby Power (ESP):
1141 kWe | 1426 kVA
🔴 Prime Power (PRP):
1028 kWe | 1285 kVA
🔴 Base Load (COP):
839 kWe | 1048 kVA
━━━━━━━━━━━━━━━━━━━━
Power Output – 1800 rpm (60 Hz)
━━━━━━━━━━━━━━━━━━━━
🔴 Standby Power (ESP):
1262 kWe | 1578 kVA
🔴 Prime Power (PRP):
1123 kWe | 1404 kVA
🔴 Base Load (COP):
914 kWe | 1143 kVA
━━━━━━━━━━━━━━━━━━━━

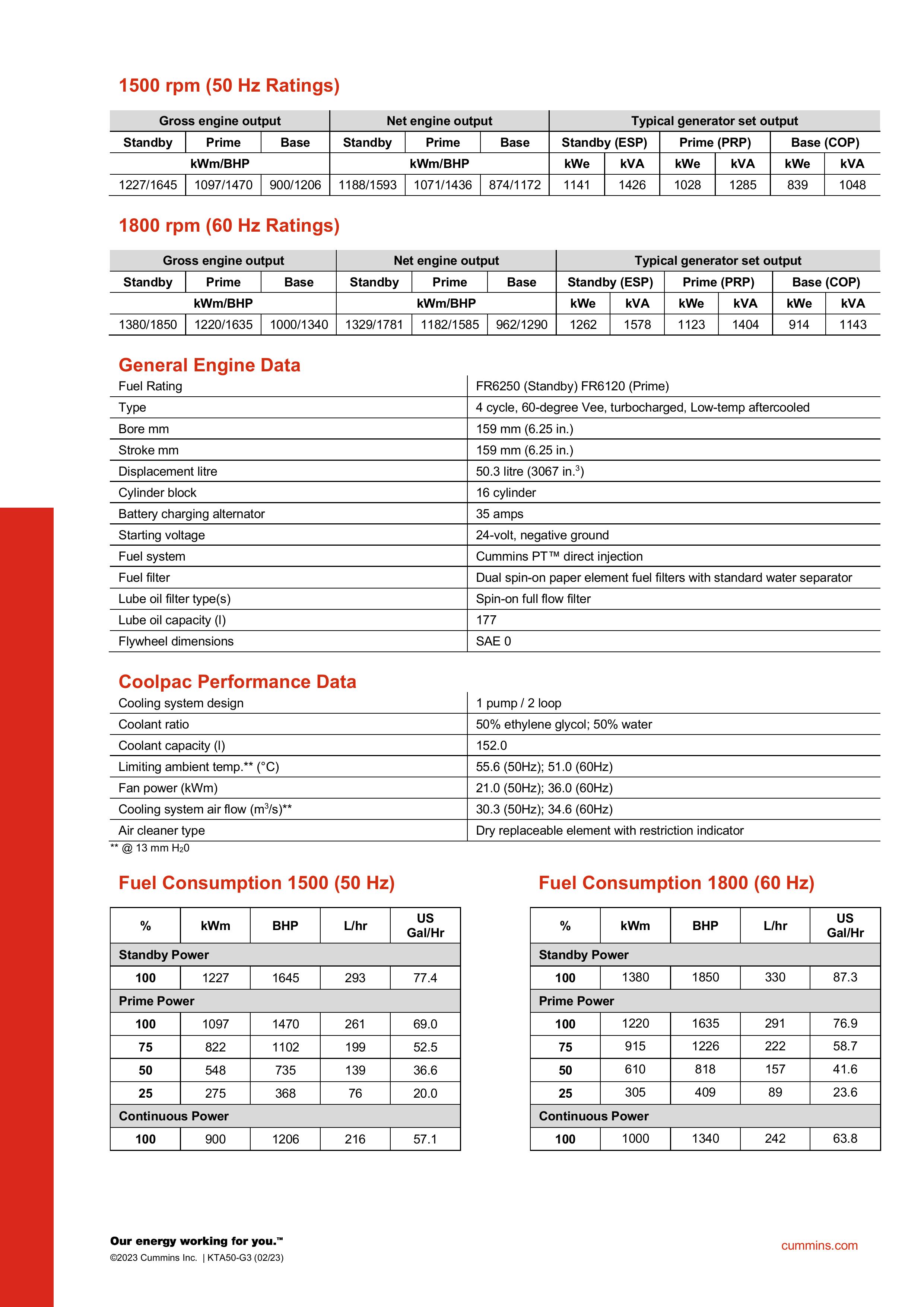

Technical Specifications
━━━━━━━━━━━━━━━━━━━━
Type: 4 cycle, 60-degree Vee, turbocharged, Low-temp aftercooled
Cylinders: 16
Displacement: 50.3 litre (3067 in³)
Bore × Stroke: 159 × 159 mm
Fuel System: Cummins PT™ Direct Injection
Starting Voltage: 24V Negative Ground
Battery Charging Alternator: 35 Amps
Fuel Filter: Dual spin-on + Standard Water Separator
Lube Oil Capacity: 177 L
Flywheel: SAE 0
Fuel Rating: FR6250 (Standby) / FR6120 (Prime)
━━━━━━━━━━━━━━━━━━━━
Cooling System Data
━━━━━━━━━━━━━━━━━━━━
Cooling System Design: 1 Pump / 2 Loop
Coolant Ratio: 50% Ethylene Glycol / 50% Water
Coolant Capacity: 152 L
Max Ambient Temp (50 Hz): 55.6°C
Max Ambient Temp (60 Hz): 51.0°C
Fan Power: 21 kWm (50 Hz) | 36 kWm (60 Hz)
Cooling Air Flow: 30.3 m³/s (50 Hz) | 34.6 m³/s (60 Hz)
Air Cleaner: Dry replaceable element with restriction indicator
━━━━━━━━━━━━━━━━━━━━

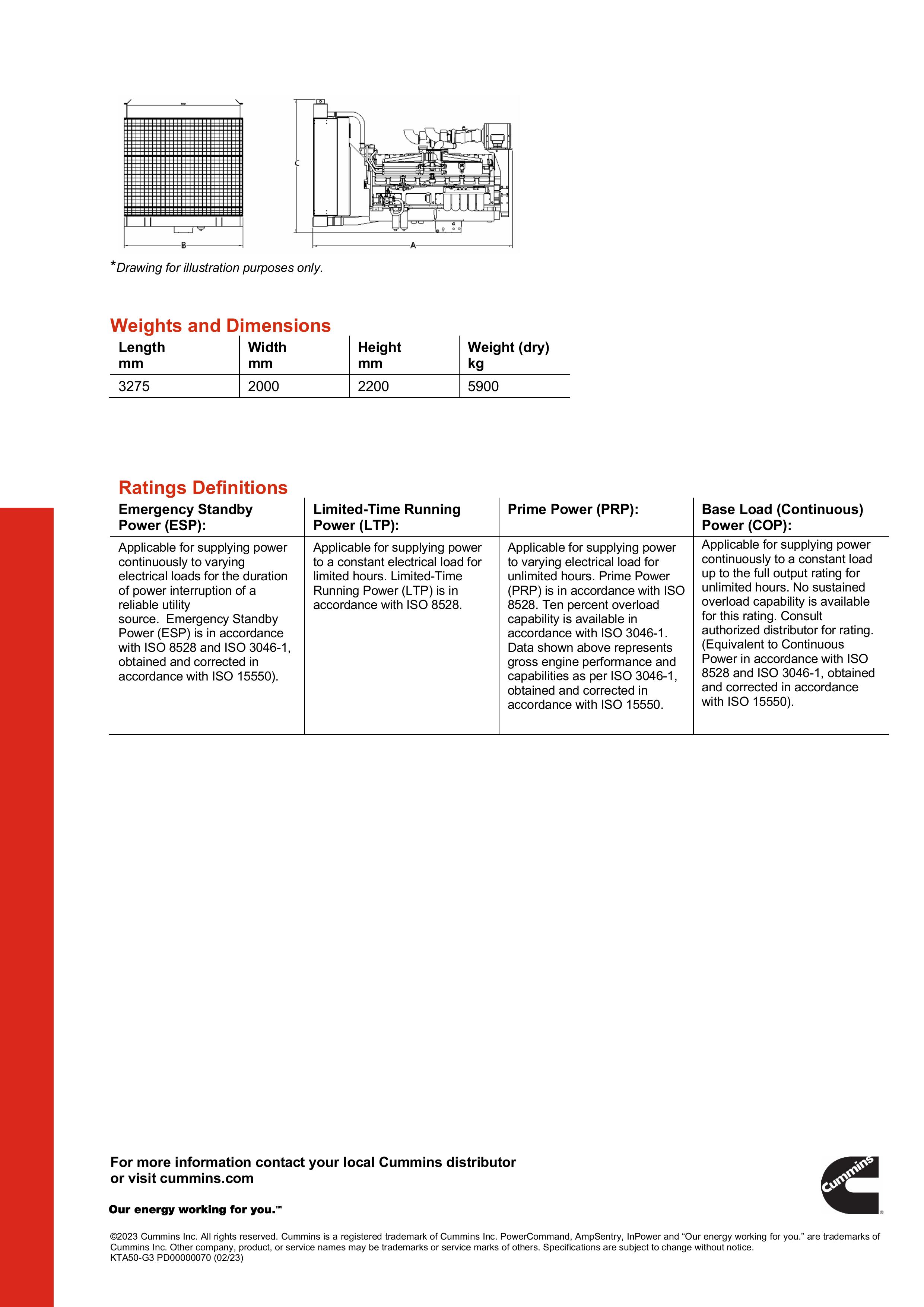

Dimensions & Weight
━━━━━━━━━━━━━━━━━━━━
Length: 3,275 mm
Width: 2,000 mm
Height: 2,200 mm
Dry Weight: 5,900 kg
━━━━━━━━━━━━━━━━━━━━
Fuel Consumption – 1500 rpm (50 Hz)
━━━━━━━━━━━━━━━━━━━━
Standby Power (100%): 293 L/hr | 77.4 US Gal/hr
Prime Power (100%): 261 L/hr | 69.0 US Gal/hr
Prime Power (75%): 199 L/hr | 52.5 US Gal/hr
Prime Power (50%): 139 L/hr | 36.6 US Gal/hr
Prime Power (25%): 76 L/hr | 20.0 US Gal/hr
Base Load (100%): 216 L/hr | 57.1 US Gal/hr
━━━━━━━━━━━━━━━━━━━━
Fuel Consumption – 1800 rpm (60 Hz)
━━━━━━━━━━━━━━━━━━━━
Standby Power (100%): 330 L/hr | 87.3 US Gal/hr
Prime Power (100%): 291 L/hr | 76.9 US Gal/hr
Prime Power (75%): 222 L/hr | 58.7 US Gal/hr
Prime Power (50%): 157 L/hr | 41.6 US Gal/hr
Prime Power (25%): 89 L/hr | 23.6 US Gal/hr
Base Load (100%): 242 L/hr | 63.8 US Gal/hr
━━━━━━━━━━━━━━━━━━━━
Features
━━━━━━━━━━━━━━━━━━━━
✅ Coolpac Integrated Design
Complete with cooling package and air cleaner kit. Each component
specifically developed and rigorously tested for G-Drive products,
ensuring high performance, durability, and reliability.
✅ Large Capacity Aftercooler
Integral aftercoolers supplied with cooling water separate from the
engine jacket. Provides cooler, denser intake air for more complete
combustion, reduced engine stress, longer life and low exhaust
emissions.
✅ One Pump, Dual-Loop Cooling System
Engine jacket cooled by one radiator or heat exchanger; aftercoolers
cooled by a separate radiator or heat exchanger.
✅ High-Quality Pistons
Dual Ni-resist aluminium alloy pistons, ground and shaped to
compensate for thermal expansion – assuring a precise fit at all
normal operating temperatures.
✅ World-Class Service & Support
G-Drive products backed by an uncompromising level of technical
support and after sales service through a world class service network.
━━━━━━━━━━━━━━━━━━━━
Certifications
━━━━━━━━━━━━━━━━━━━━
✅ ISO 9001 – Quality Management
✅ ISO 14001 – Environmental Management
✅ ISO 45001 – Occupational Health & Safety
✅ RoHS – Consult factory for information
━━━━━━━━━━━━━━━━━━━━
